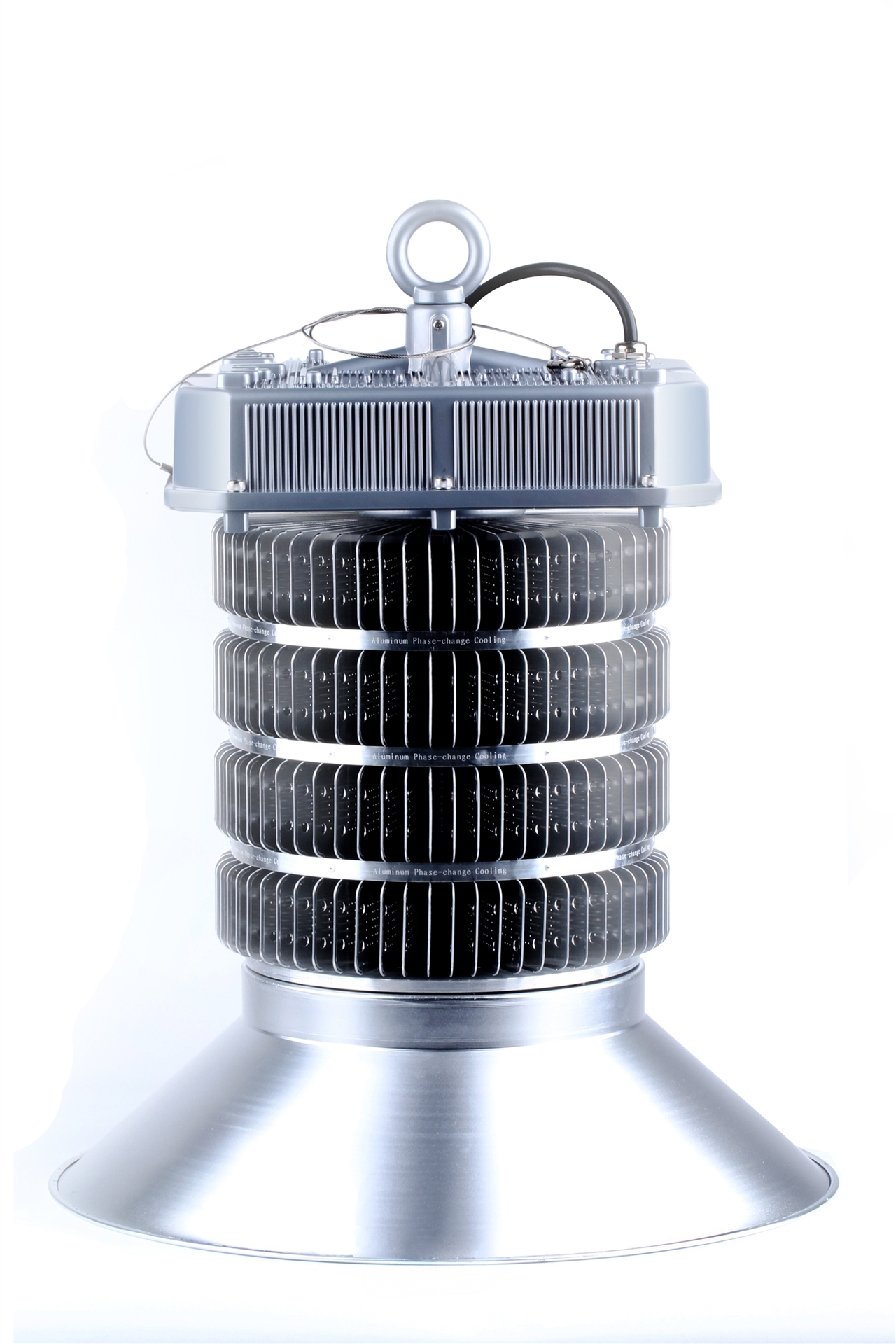

300W LED High Bay Light High Input AC200-480V
n Product Features Ø CREE Second Generation XMLB LED, high luminous efficiency and long life. Ø MEAN WELL High efficiency LED Driver, the wide range input voltage AC200V- 480V; Ø Heat pipe with fins cooling design, better cooling, light quality, LED Tj < 85℃. Ø Excellent lampshade design, greatly improved the light utilization and evenness. Ø The hook card embedded installation, easy to install, safety and firm. Ø Embedded installation for the LED Driver, isolation constant current drive mode, safe, reliable and stable. Structure Features ØShell materials: Heat pipe and cooling fins for 1070 aluminum alloy. ØColor: Silver white (Electrolytic shading) Ø Net weight：11.50Kg n Technical Parameters Tpye WSD-HB30W48-xxK Power 300W Lighting Angle 45°/80°/120° Input Voltage AC200-480V LED Brightness Decay <5%/6000 hrs PF >0.95 Working Life >50000 hrs Driver Efficiency >90% Working Temperature -30 - +40℃ Luminous Flux 27000 Lm Storage Temperature -40 -+80℃ Color Temperature 3000K/4000k/5000K/6500k Protection Level Wet Location CRI Ra>75 Cable 3 core，18AWG(1.5m)
