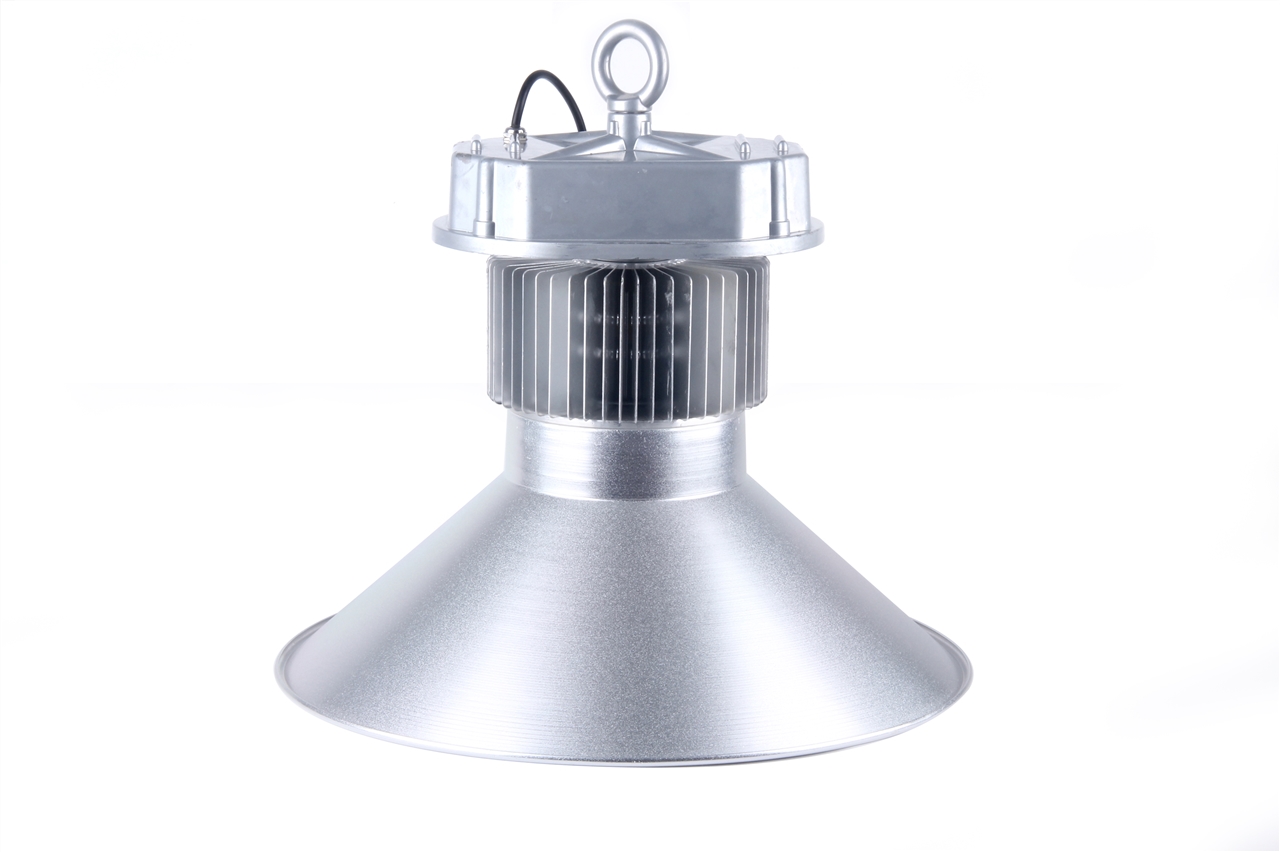

100W COB LED High Bay Lighting
n Product Features l COB LED, high luminous efficiency and long life. l MEAN WELL High efficiency LED Driver, the wide range input voltage AC100-277V； l Heat pipe with fins cooling design, better cooling, light quality, LED Tj < 85℃. l Excellent lampshade design, greatly improve the light utilization and evenness. Product Applications WSD LED High Bay Lighting series can be widely used in outdoor, indoor or outdoor lighting(Wet Location), like mechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth, waiting rooms, the platforms of railway station , indoor stadiums and flower cultivating tents etc. Structure Features l Shell materials: Heat pipe and cooling fins for 1070 aluminum alloy. l Color: Silver white (Electrolytic shading) lNet weight：5.50Kg Technical Parameters Tpye WSD-HB10W27-xxK Power 100W Lighting Angle 45°/90°/120° Input Voltage AC100-277V LED Brightness Decay <5%/6000 hrs PF >0.95 Working Life >50000 hrs Driver Efficiency >90% Working Temperature -30 - +40℃ Luminous Flux 9650 Lm Storage Temperature -40 -+80℃ Color Temperature 3000K/4000k/5000K/6500k Protection Level CRI Ra>75 Cable 3 core，18AWG(1.5m)
