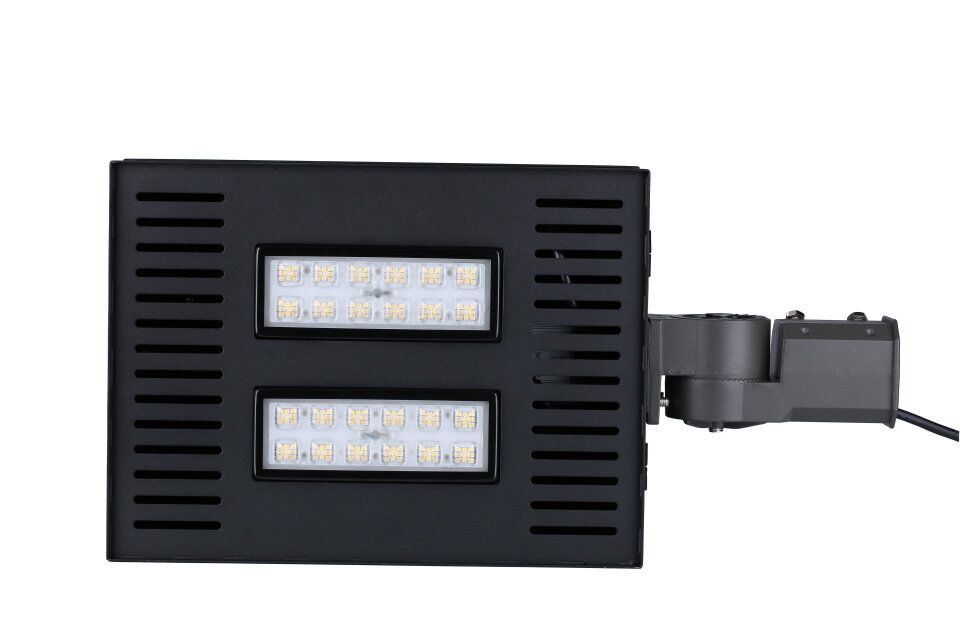

150W LED Shoebox Street Lighting
■ Product Features ■ Product Applications WSD LED Street Lighting series can be widely used in Urban roads, industrial areas, residential areas, sidewalks, squares, parks, schools, gardens etc. ■ Structure Features ■ Technical Parameters Type WSD-SB15W27-XXK-T5 Power 150W Lighting Angle Type III, Type VSq Input Voltage AC100-277V LED Brightness Decay <5%/6000 hrs PF >0.95 Working Life >50000 hrs Driver Efficiency >90% Working Temperature -30 - +45℃ Luminous Flux 17600Lm Storage Temperature -40 -+80℃ ColorTemperature 3000K/4000k/5000K/6500k Protection Level Wet Location/IP65 CRI Ra 80 Cable 3 core，18AWG(1.5m)
● High efficiency LED Driver, the wide range input voltage AC100-277V
● Top brand LED high luminous efficiency and long life.
● Fins cooling module design, better cooling and easy replacement, light quality, LED Tj < 85℃.
● Excellent optical design, greatly improve the light utilization and evenness.
●Shell material:Aluminum alloy.
●Color: Black
●Net weight：9.00Kg
