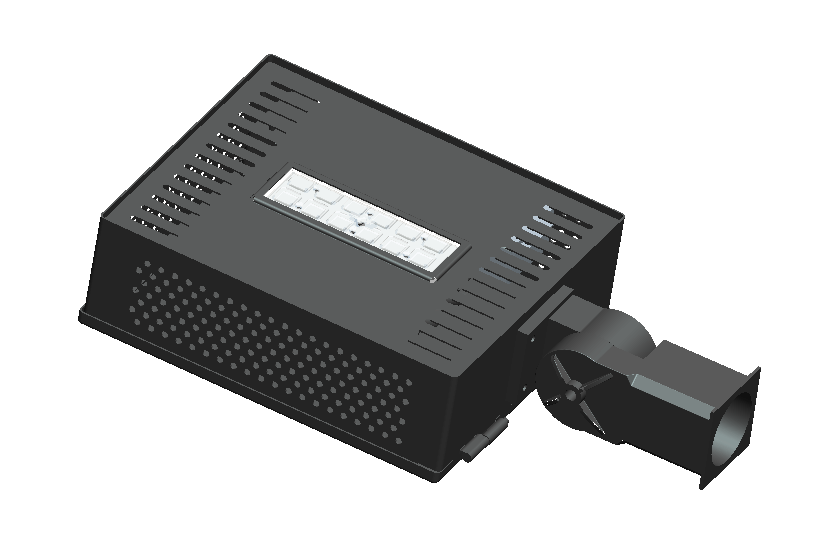

100W LED Shoebox Street Lighting
■ Product Features
● High efficiency LED Driver, the wide range input voltage AC100-277V
● Top brand LED high luminous efficiency and long life.
● Fins cooling module design, better cooling and easy replacement, light quality, LED Tj < 85℃.
● Excellent optical design, greatly improved the light utilization and evenness.
■ Product Applications
WSD LED Street Lighting series can be widely used in Urban roads, industrial areas, residential areas, sidewalks, squares, parks, schools, gardens etc.
■ Structure Features
●Shell material:Aluminum alloy.
●Color: Black
●Net weight：7.00Kg
■ Technical Parameters
Type | WSD-SB10W27-XXK-T5 | ||
Power | 100W | Lighting Angle | Type III, Type VSq |
Input Voltage | AC100-277V | LED Brightness Decay | <5%/6000 hrs |
PF | >0.95 | Working Life | >50000 hrs |
Driver Efficiency | >90% | Working Temperature | -30 - +45℃ |
Luminous Flux | 10500Lm | Storage Temperature | -40 -+80℃ |
ColorTemperature | 3000K/4000k/5000K/6500k | Protection Level | Wet Location/IP65 |
CRI | Ra 80 | Cable | 3 core，18AWG(1.5m) |
