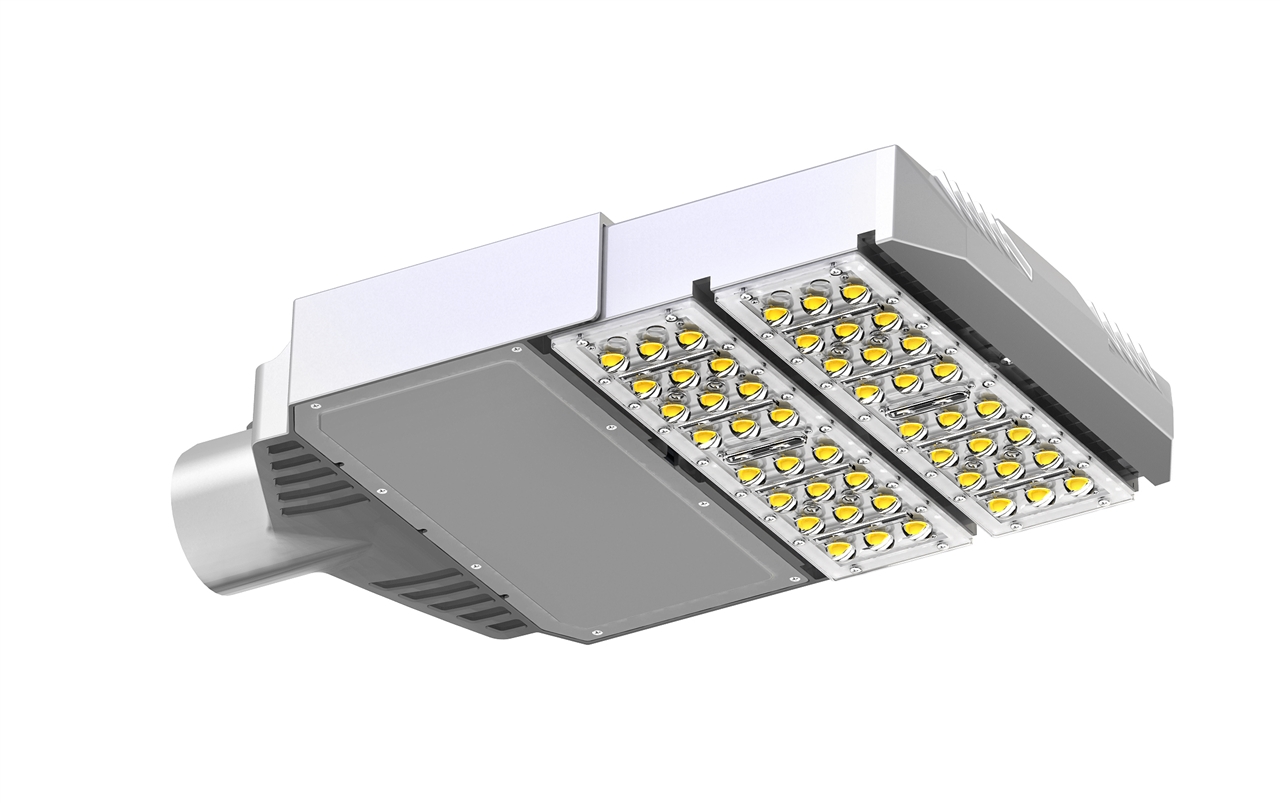

100w LED Street Lighting
Product Features: CREE XTE LED, high luminous efficiency and long life. MEAN WELL High efficiency LED Driver, the wide range input voltage AC100-277V； Heat pipe with fins cooling design, better cooling, light quality, LED Tj < 85℃. Excellent optical design, greatly improve the light utilization and evenness. Product Applications WSD LED Street Lighting series can be widely used in Urban roads, industrial areas, residential areas, sidewalks, squares, parks, schools, gardens etc. Structure Features Shell materials: Cooling fins for 1070 aluminum alloy Color: Silver white (Electrolytic shading) Net weight：5.6Kg Technical Parameters Type WSD-SL10W27-xxK Power 100W Lighting Angle 75*145° Input Voltage AC100-277V LED Brightness Decay <5%/6000 hrs PF >0.95 Working Life >50000 hrs Driver Efficiency >90% Working Temperature -30 - +40℃ Luminous Flux 9738 Lm Storage Temperature -40 -+80℃ Color Temperature 3000K/4000k/5000K/6500k Protection Level Wet Location/IP65 CRI Ra>75 Cable 3 core，18AWG(1.5m)
