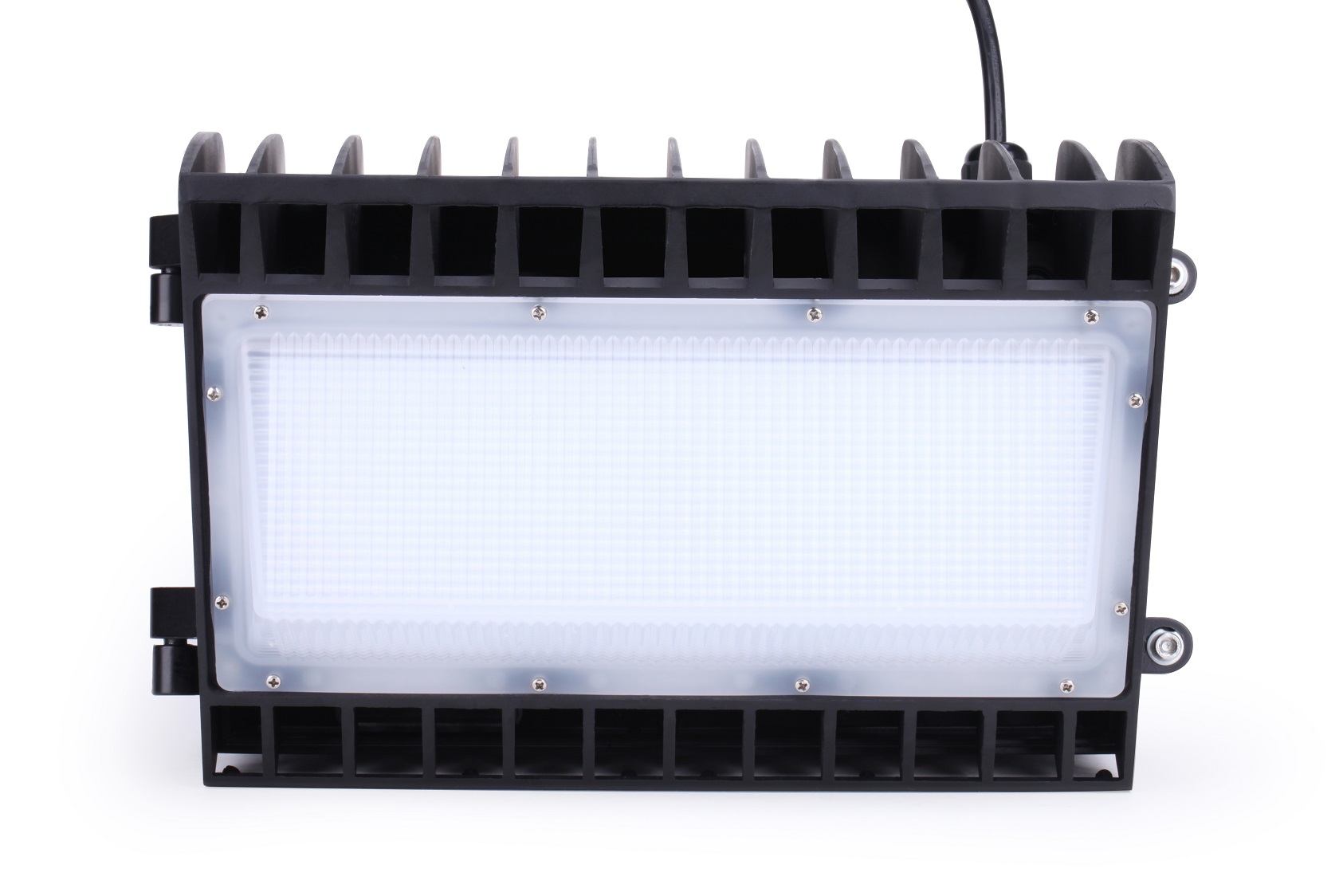

100W/120W/150W WALL PACK AC200-480V
n Product Features Ø CREE Second Generation XTE LED or Lumileds, high luminous efficiency and long life. Ø MEAN WELL High efficiency LED Driver, the wide range input voltage AC180V- 528V; Ø Cast aluminium cooling design better cooling, light quality, LED Tj < 85℃. Ø Excellent lampshade design, greatly improve the light utilization and evenness. Ø Embedded installation for the LED Driver, isolation constant current drive mode, safe, reliable and stable. n Structure Features Ø Shell materials: Aluminum & PC . Ø Color: Black shell and white lampshade Ø Net weight：8.6Kg n n Technical Parameters Tpye WSD-WP10W48-xxK WSD-WP12W48-xxK WSD-WP15W48-xxK Power 100W/120W/150W Lighting Angle 110*130° Input Voltage AC200-480V LED Brightness Decay <5%/6000 hrs PF >0.95 Working Life >50000 hrs Driver Efficiency >90% Working Temperature -30 - +40℃ Luminous Flux 9500-13500 Lm Storage Temperature -40 -+80℃ Color Temperature 3000K/4000k/5000K/6500k Protection Level Wet Location CRI Ra>75 Cable 3 core，18AWG(1.5m)
