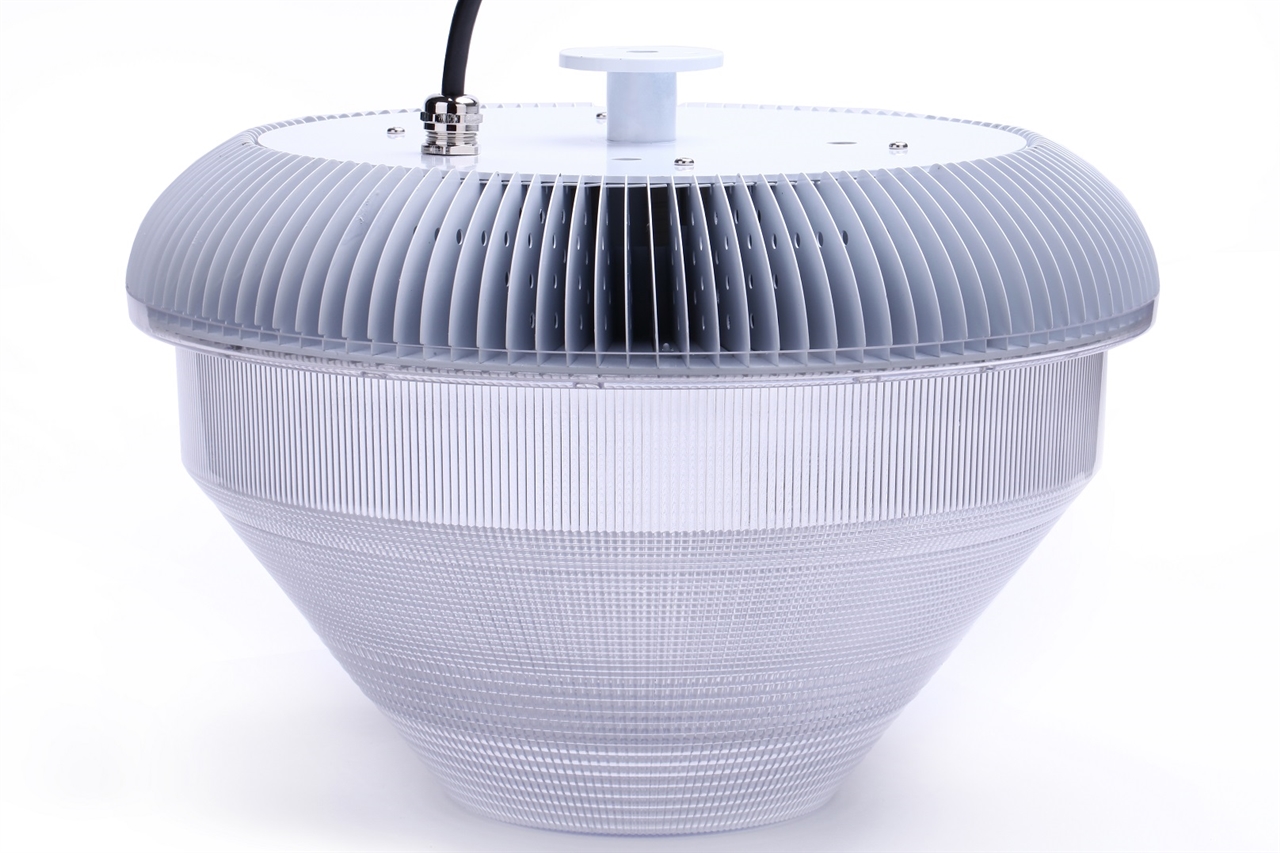

90W Low Bay Light
Product Features:
-
Philips Lumileds LED, high luminous efficiency and long life.
-
MEAN WELL High efficiency LED Driver, the wide range input voltage AC100-277V;
-
Fins cooling design, better cooling, light quality, LED Tj < 85℃.
-
Excellent optical design, greatly improve the light utilization and evenness.
-
Dimmable Control gear, Energy-saving, convenient and user-friendly
Product Applications
-
WSD LED Low Bay Light series can be widely used in indoor or half outdoor lighting, like Indoor parking, mechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth, waiting rooms, the platforms of railway station etc
Structure Features
-
Shell materials: 1070 Aluminum & PC
-
Color: Black or White Net weight:3.3Kg
-
Technical Parameter
Type |
WSD-LB09W27-xxK |
||
Power |
90W |
Lighting Angle |
160° |
Input Voltage |
AC100-277V |
LED Brightness Decay |
<5%/6000 hrs |
PF |
>0.95 |
Working Life |
>50000 hrs |
Driver Efficiency |
>90% |
Working Temperature |
-30 - +40℃ |
Luminous Flux |
7800Lm |
Storage Temperature |
-40 -+80℃ |
Color Temperature |
3000K/4000k/5000K/6500k |
Protection Level |
Damp Location/IP54 |
CRI |
Ra>75 |
Cable |
3 core,18AWG(1.5m) |
